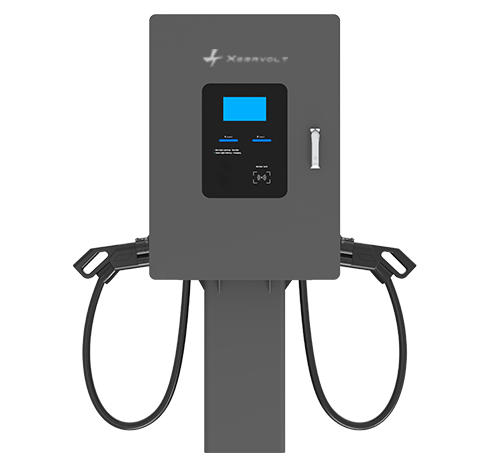

DC EV Fast Charger
Compact CCS2 DC charger with 150‑1000 V output, 7‑inch color touchscreen, and OCPP 1.6 backend—built for forecourts, fleets, or retail parking.
kW
Pick the power tier that matches your grid and dwell time. Full current across 150‑1000 V battery packs.
IP54 / IK10
Stainless‑steel cabinet—weather‑sealed & vandal‑resistant.
Years Experience
Powerful, Flexible, Future‑Proof
With 7.4 kW for single‑phase homes and 22 kW for three‑phase setups, the Series Wallbox grows with your panel, your solar array, and your next EV.
Adjustable Current
Dial in 10 A, 13 A, 16 A, or 32 A to match any breaker.
Smart Scheduling
Auto‑start during off‑peak hours and track savings in real time.
Safety You Can See—and Trust
From built‑in PEN fault detection to encrypted firmware, every layer of the X‑Series Wallbox is engineered to protect your home, your car, and your data.
PEN Fault Protection
No earth rod needed—built‑in PEN detection slashes install time and cost.
Dual Residual Current Detection
AC 30 mA Type A + DC 6 mA sensors cut power in milliseconds.
LED Status Ring
360° colors show standby, charging, or fault—clearly visible day and night.
Secure Firmware
Signed OTA updates, encryption, and rolling security logs block tampering
Wi‑Fi & Ethernet on board, 4G optional
OCPP 1.6 JSON certified—ready for any backend
RFID tap‑to‑start + remote unlock via app
UK Smart Charge Point Regulations compliant, tamper alerts included
Always Online, Always Compliant
Specification
Technical Specification
European standard
| Model | XEVD-A20-C-AL | XEVD-A30-C-AL | XEVD-A40-CC-AL | XEVD-A60-CC-AL |
|---|---|---|---|---|
| INPUT CHARACTERISTIC | ||||
| Input voltage | 230/400V 50Hz | |||
| Input frequency | 50/60Hz | |||
| Input Amps/per phase | 31A | 47A | 62A | 93A |
| Stand-by consumption | <30W | |||
| DC OUTPUT CHARACTERISTIC | ||||
| Number of charging points | CCS2 | CCS2 | CCS2x2 | CCS2x2 |
| Charging mode | Mode 4 | |||
| Output voltage | 200-1000V DC | |||
| Max. output power | 20KW | 30KW | 40KW | 60KW |
| Max output current | 66.5A DC | 100A DC | 133A DC | 200A DC |
| Voltage accuracy | <0.5% | |||
| Current accuracy | <±1% | |||
| Ripple coefficient | RMS: ≤0.5%; Peak: ≤1% | |||
| THD | ≤5%@50%-100%full load | |||
| Meeting accuracy | 0.5 | |||
| Efficiency | ≥95.2% (Full load) | |||
| WORKING ENVIRONMENT | ||||
| Protection degree | IP54 | |||
| Environment temperature | -25 to 50°C | |||
| cooling | forced air cooling | |||
| Relative humidity | 5%-95% non-condensing | |||
| Altitude | 2,000 m | |||
| Housing material | Stainless steel spraying | |||
| Noise emission | <65db | |||
| Storage temperature | -40-70°C | |||
| Mechanical impact resistance | IK10 | |||
| STANDARD | ||||
| Standard | ISO 15118,DIN EN 61851-1 DIN EN 61851-23 DIN IEC/TS 61439-7 | |||
Protection
- Over voltage protection
- Under voltage protection
- Over load protection
- Short circuit protection
- Over-temp protection
- Surge protection
- TypeA RCBO
Function & Accessory
- Display: TFT Color touch display 7"
- LED indicator light
- Emergency stop button
- Ambient lighting
Authentication
- RFID
- QR code
Optional
- PEN protection
- integrated 4G
- WIFI
Connectivity
- Connectivity
- OCPP 1.6 JSON
- Ethernet connection
Find the Perfect Charger for Your Business

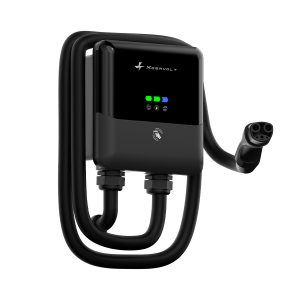

Smart Wallbox
7/22kw
IP66/IK10
Portable AC Charger
7/22kW
IP65/IK10

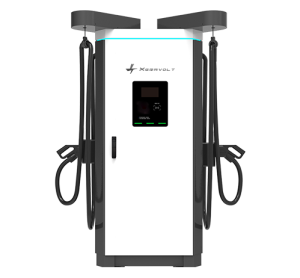

Commercial DC Charger
60-300kW
IP54/Ik10
Have Question?
Everything You Need to Know Here Today
The charger accepts 260‑480 V AC, three‑phase, 50/60 Hz. Typical full‑load current per phase: ≈30 A (20 kW), 45 A (30 kW) and 60 A (40 kW). Size breakers and cables accordingly and reserve at least 20 % headroom for inrush.
Yes. It is designed for 480 V class systems. For lower 208/240 V services you would need a step‑up transformer; otherwise the charger will derate or shut down.
Standard is a 5 m liquid‑cooled CCS2 cable. We can provide 6 m (40 kW) or 7 m (≤30 kW) leads on request, and supply CHAdeMO or GB/T heads for volume orders.
Firmware supports OCPP 1.6 JSON out‑of‑the‑box and is OTA‑upgradable to OCPP 2.0.1. Ethernet is standard; optional 4G/LTE and Wi‑Fi modules are available.
Yes. DC energy metering accuracy is Class 0.5 and the hardware is CE & UKCA certified. MID‑compliant metering can be supplied for EU public billing requirements.
Over/under‑voltage, short‑circuit, surge, over‑temperature, insulation monitoring and a Type A RCBO (Type B optional). An emergency stop switch is located on the front panel.
