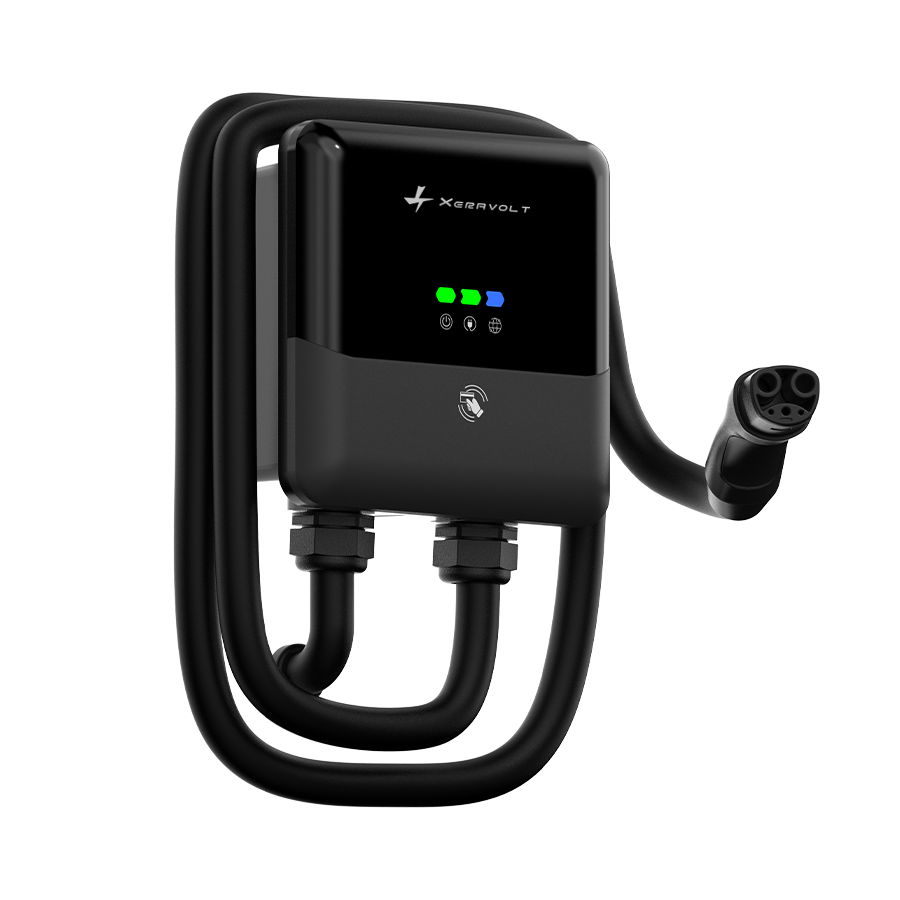

Dual-Standard Smart EV Wallbox
Rugged 40 / 48 A wallbox that swaps between Type 1 and NACS, stretches 25 ft, shrugs off weather (IP66 / IK10) and lets you run the show from a phone or RFID tap—no fuss, just smart, fast charging.
kW
Selectable 32 A output delivers 7 kW on 230 V single‑phase or a rapid 22 kW on 400 V three‑phase, giving one charger the flexibility to serve either home circuits or commercial power feeds.
IP66 / IK10
IP66‑sealed, IK10‑tough UNR1 comes ETL, FCC & ENERGY STAR approved. Its 25 ft cable, one‑touch door, quick‑reset key and thermal safety make install and upkeep effortless
Years Experience
Powerful, Flexible, Future‑Proof
With 7.4 kW for single‑phase homes and 22 kW for three‑phase setups, the Series Wallbox grows with your panel, your solar array, and your next EV.
Adjustable Current
Dial in 10 A, 13 A, 16 A, or 32 A to match any breaker.
Smart Scheduling
Auto‑start during off‑peak hours and track savings in real time.
Safety You Can See—and Trust
From built‑in PEN fault detection to encrypted firmware, every layer of the X‑Series Wallbox is engineered to protect your home, your car, and your data.
PEN Fault Protection
No earth rod needed—built‑in PEN detection slashes install time and cost.
Dual Residual Current Detection
AC 30 mA Type A + DC 6 mA sensors cut power in milliseconds.
LED Status Ring
360° colors show standby, charging, or fault—clearly visible day and night.
Secure Firmware
Signed OTA updates, encryption, and rolling security logs block tampering
Wi‑Fi & Ethernet on board, 4G optional
OCPP 1.6 JSON certified—ready for any backend

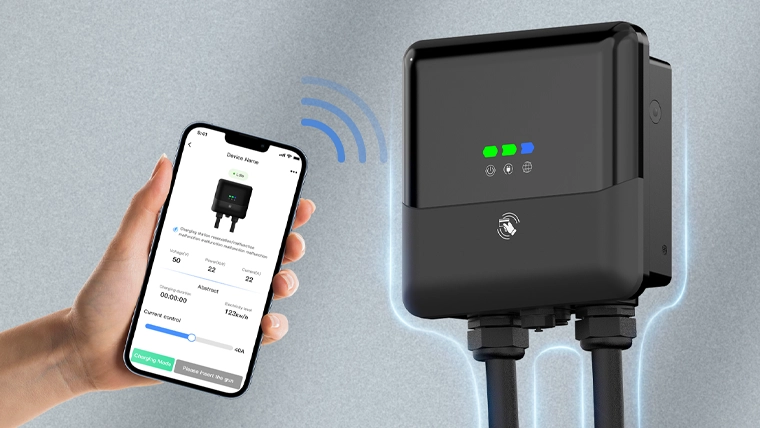

RFID tap‑to‑start + remote unlock via app
UK Smart Charge Point Regulations compliant, tamper alerts included
Always Online, Always Compliant
Specification
UER1 Pro Series
Technical Specification
| Model Number | XEVC-AC-1-7AEU1 | XEVC-AC-1-22AEU1 |
|---|---|---|
| Electrical Specification | ||
| Input Connector | Hardwired | |
| Voltage | 230V±10% | 400V±10% |
| Amperage/Power Output | 32A/7KW | 32A/22KW |
| Energy Metering Accuracy | ±1% | |
| Mounting Option | Wall or Pedestal mount, Pedestal Optional | |
| Charging Interface | ||
| Charging Connector | IEC 62196-2 Compliant, Type 2 cable | |
| Charging Cable Length | 5m Standard, 7m Optional | |
| User Interaction | ||
| LED Status Indicator | CHARGING/CONNECT/FAULT status indication | |
| Resetting key | Reset or restore factory Settings | |
| Authentication | RFID: ISO14443 Type A&B | |
| Remote control | U-Charger APP | |
| Communication | ||
| Network Interface | WiFi/BT Standard | WiFi/BT Standard, LAN Optional |
| Charging Protocol | OCPP1.6J optional | |
| Extend | Without | 1*RS485,CT-CLAMP Optional,CT-BOX Optional |
| Safety & Compliance | ||
| Safety Protection | Ground Fault Detection+DC6,Ground Monitor: BS-7671, O-PEN:BS-7671,Surge Protection:4kV @2,000A | |
| Protection | UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection,D-PEN Protection | |
| Safety Compliance | IEC61851-1, IEC61851-21-2, EN 62311, EN 62479, IEC/EN 62955 | |
| Certification | CE/CB | |
| Environmental | ||
| Operating Temperature | -30°C ~ 55°C | |
| Operating Humidity | 5%~95% RH,Non-condensing | |
| Operating Altitude | ≤2000m,No Derating | |
| IP/IK Level | IP66/IK10 | |
| Specification | ||
| Net Weight | 6.5KG | 7.4KG |
| Gross Weight | 9.9KG | 10.8KG |
| Product Dimensions | 220W*220D*101.5H(mm) | |
| Package Dimensions | 400W*390D*275H(mm) | |
Feature
- IP66/IK10
- WiFi/BT Connectivity
- Ground Fault Detection
- LED Status Indicator
- Energy Metering
- RFID Authentication
- U-Charger APP
- Over Temperature Protection
- Surge Protection
- Type 2 Connector
Optional
- OCPP1.6J
- 7m Cable
- LAN Interface
- Pedestal Mount
- RS485
- CT-CLAMP
- CT-BOX
Find the Perfect Charger for Your Business
AC Charger with Screen
7/22kw
IP65/IK10
Portable EV Charger
3.7kW
IP65/IK10
Commercial DC Charger
60-300kW
IP54/Ik10
Have Question?
Everything You Need to Know Here Today
Yes. Add the optional CT‑Clamp sensor; the charger will dynamically throttle (6‑32 A) to stay below a pre‑set mains threshold.
Each unit comes with a 5 m Type 2 tethered cable (IEC 62196‑2). A 7 m lead is optional for fleets or wall‑mounts with long reach.
All models include O‑PEN detection (BS 7671). In the event of a lost PEN conductor the unit disconnects safely without the need for an earth rod.
Wi‑Fi & Bluetooth are standard. We also add Ethernet; 4G cellular dongles are available for both lines.
Yes. The RFID (ISO 14443 A&B) reader is independent of the U‑Charger App. Both methods can authorise charging in parallel, useful for mixed fleets.
The housing is IP66 / IK10 and operates from –30 °C to +55 °C, 5 – 95 % RH. A rain hood is only recommended in extreme sun to extend cable life.
