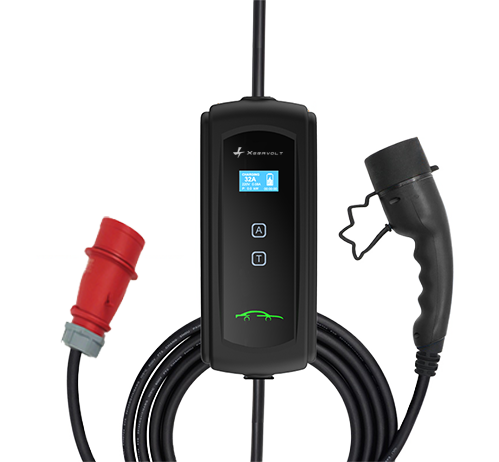

Portable Smart Charger
Rugged, LCD‑guided portable EV charger—adjustable 10‑32 A current, adapter‑plug ready, and IP65‑sealed for road trips, depots, or daily driveway use.
kW
Single‑phase or three‑phase output—top‑up anywhere a socket lives. Twist‑dial to fit campsite, warehouse or home breakers in seconds.
IP65
Dust‑tight & rain‑proof; built to travel, certified CE / UKCA.
Years Experience
Powerful, Flexible, Future‑Proof
The Series Wallbox grows with your panel, your solar array, and your next EV.
Adjustable Current
Dial in 10 A, 13 A, 16 A, or 32 A to match any breaker.
Smart Scheduling
Auto‑start during off‑peak hours and track savings in real time.
Safety You Can See—and Trust
From built‑in PEN fault detection to encrypted firmware, every layer of the X‑Series is engineered to protect your home, your car, and your data.
PEN Fault Protection
No earth rod needed—built‑in PEN detection slashes install time and cost.
Dual Residual Current Detection
AC 30 mA Type A + DC 6 mA sensors cut power in milliseconds.
LED Status Ring
360° colors show standby, charging, or fault—clearly visible day and night.
Secure Firmware
Signed OTA updates, encryption, and rolling security logs block tampering
Wi‑Fi & Ethernet on board, 4G optional
OCPP 1.6 JSON certified—ready for any backend
RFID tap‑to‑start + remote unlock via app
UK Smart Charge Point Regulations compliant, tamper alerts included
Always Online, Always Compliant
Specification
Technical Specification
European standard
| Model Number | XPEVC-1L-32A | XPEVC-3L-32A |
|---|---|---|
| AC power | 1P+N+PE | 3P+N+PE |
| Voltage (V) | AC 220 ~ 240V | AC380V ~ 415V |
| Frequency (Hz) | 50/60Hz | 50/60Hz |
| Operating Temperature | -25°C to +50°C | -25°C to +50°C |
| Rated Current | 32A (24A, 16A, 13A, 10A adjustable) | 32A (24A, 16A, 13A, 10A adjustable) |
| Over Current Protection | Recommended 36A | Recommended 36A |
| Charging Connector | EN IEC 61851,EN 62196 | EN IEC 61851,EN 62196 |
| Input Cable length | 0.8m+Plug | 0.8m+Plug |
| Cable length | 5m | 5m |
| AC & DC Fault Protection | AC 30mA Type A+ DC 6mA sensitive protective device | AC 30mA Type A+ DC 6mA sensitive protective device |
Feature
- IP65
- Portable
- Over Current Protection
- Ground detection
- LED charging status indicator
- AC & DC Fault Protection
- Over temperature protection
- Surge protection
Optional
- APP (Tuya)
Find the Perfect Charger for Your Business

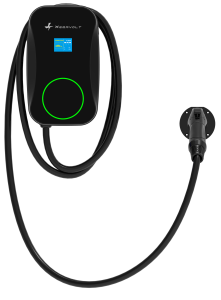

Smart Wallbox
7/22kw
IP66/IK10
AC Charger with Screen
7/22kW
IP65/IK10
Commercial DC Charger
60-300kW
IP54/Ik10
Have Question?
Everything You Need to Know Here Today
220‑240 V AC single‑phase (L + N + PE), 50/60 Hz. Use a 36 A C‑curve breaker and ≥ 3 × 6 mm² cable; terminals accept up to 10 mm².
Yes. Hardware dial (6‑32 A) is standard; with the TUYA App or OCPP 1.6 J options you can adjust current or schedules via app / backend API.
Yes. 30 mA Type A + 6 mA DC detection is integrated, so no external Type B RCD is required.
TUYA gives quick Wi‑Fi/Bluetooth setup for small sites; OCPP 1.6 J adds Ethernet/4G and full backend billing, load‑balancing & roaming. They can be ordered together.
With OCPP you can use backend load balancing. For onsite master‑slave sharing, request the “Smart Cluster” firmware when ordering.
Standard is a Type 2 socket; a 5 m tethered‑cable version is available on request.
Yes. Select the “PEN protection (UK)” option to comply with BS 7671 Amd 2 on TN‑C‑S supplies—no earth rod needed.
